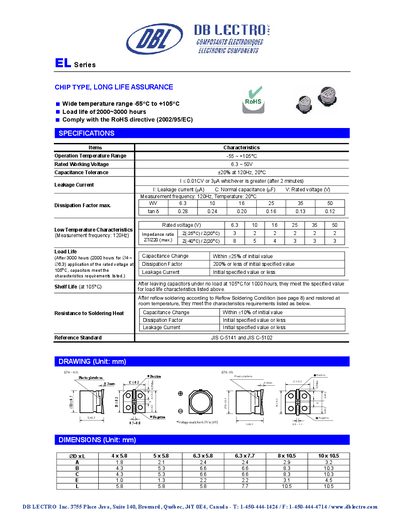

DB LECTRO EL Series Datasheet

About this manual

This datasheet details the EL Series aluminum electrolytic capacitors, covering their electrical specifications such as operating temperature range, rated voltage, capacitance tolerance and load life. It also includes dimensional data, permissible ripple current, and part‑number explanations.

Additional sections describe RoHS compliance, recommended mounting practices, handling precautions, and the factors influencing capacitor life. Packaging information and reel quantities are provided for production planning.

What's inside

• Specification
• Dimensions & Maximum Permissible Ripple Current
• Explanation of Part Numbers
• RoHS Compliance
• Series Table
• Series Chart
• General Information for Application
• Mounting
• Life of Aluminum Electrolytic Capacitors

Specifications

Frequently asked questions

What is the operating temperature range of EL Series capacitors?

The EL Series capacitors operate from –55 °C up to +105 °C.

Are the EL Series capacitors RoHS compliant?

Yes, they comply with the RoHS directive (2002/95/EC).

What is the rated voltage range for the EL Series?

The rated working voltage ranges from 6.3 V to 50 V.

What is the specified load life of these capacitors?

The specified load life is between 2000 and 3000 hours.
