The FR60 is a 32-bit high-performance RISC CPU from Fujitsu, which integrates a wealth of peripheral resources and bus control functions, suitable for embedded control applications requiring high CPU performance.

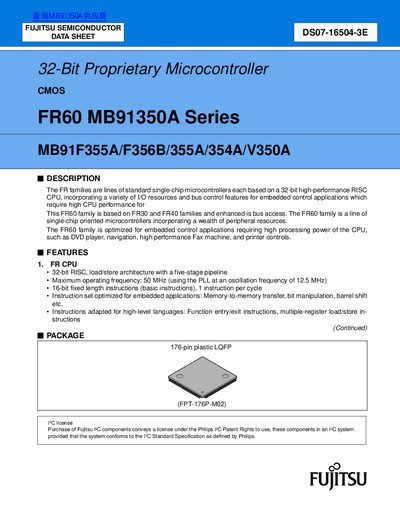

This document describes the FR60 family of standard single-chip microcontrollers based on a 32-bit high-performance RISC CPU. The series is optimized for embedded control applications requiring high processing power, such as DVD players, navigation systems, fax machines, and printer controls.
Key features include a five-stage pipeline architecture with a maximum operating frequency of 50 MHz, Harvard architecture allowing simultaneous program and data access, and extensive peripheral resources including multiple timers, UARTs, A/D converters, and DMA controllers. The microcontrollers are available in a 176-pin plastic LQFP package.
| CPU Architecture | 32-bit RISC, load/store architecture with a five-stage pipeline |
|---|---|
| Maximum Operating Frequency | 50 MHz |
| Package Type | 176-pin plastic LQFP |
| RAM Stack Size | 16 KB |
| A/D Converter Resolution | 10-bit resolution. 12 channels |
| Power Supply Voltage | 3.3V + 0.3V |
The FR60 family is optimized for embedded control applications requiring high processing power, such as DVD players, navigation systems, fax machines, and printers.
The maximum operating frequency for the FRCPU is 50 MHz when using the PLL at an oscillation frequency of 12.5 MHz.
The A/D converter provides a 10-bit resolution across 12 channels.
