FTR-K1 Series is a low-voltage relay introduced by Panasonic. The relay has low power consumption, high sensitivity, lead-free contacts, safety standard certification and other features

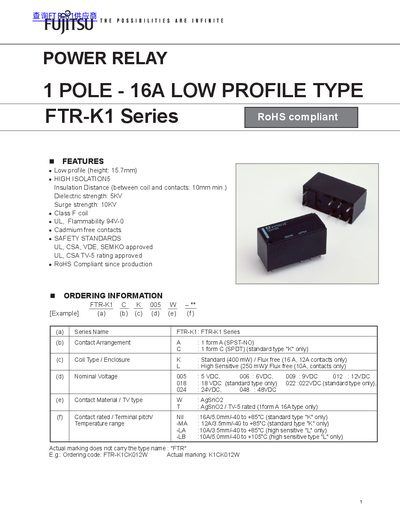

This document provides technical details for the Fujitsu FTR-K1 Series of 1-pole, 16A low profile power relays. It includes ordering information, safety standards, and detailed electrical specifications for standard (Type K) and high sensitive (Type L) variants.
The datasheet also covers physical dimensions, coil performance charts, environmental resistance data, and specific RoHS compliance information regarding lead-free soldering profiles and hazardous materials.
| Maximum Carrying Current | 16A |
|---|---|
| Operating Temperature Range | -40° C to +85° C |
| Insulation Resistance | Minimum 1,000 Mohms |
Yes, the relays are RoHS Compliant since production and do not contain restricted hazardous materials.
The manufacturer recommends using Sn-3.0Ag-0.5Cu solder paste.
