MBM29LV320TE/BE is 32 M-bit, 3.0 V-only Flash memory organized as 4 M bytes of 8 bits each or 2 M words of 16 bits each. The device is offered in a 48-pin TSOP (I) and 63-ball FBGA packages.

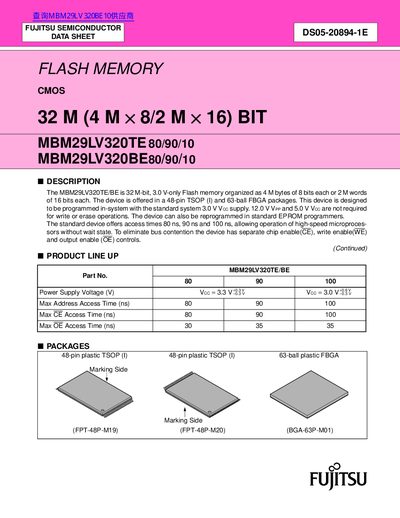

This document is a datasheet for the Fujitsu MBM29LV320TE/BE series of 32 M-bit CMOS Flash memory devices. The device is organized as 4 M bytes of 8 bits each or 2 M words of 16 bits each and operates with a single 3.0 V power supply, eliminating the need for higher voltages during write or erase operations.
The MBM29LV320TE/BE features sector erase architecture allowing individual sectors to be erased without affecting others, along with embedded algorithms for programming and erasing. It is available in 48-pin TSOP (I) and 63-ball FBGA packages and offers access times of 80 ns, 90 ns, or 100 ns.
| Memory Capacity | 32 M-bit (4 M x 8/2 M x 16) |
|---|---|
| Power Supply Voltage | 3.0 V only |
| Max Access Time (80ns model) | 80 ns |
| Min Program/Erase Cycles | 100,000 cycles |
| Packages | 48-pin TSOP (I) and 63-ball FBGA |
The device offers access times of 80 ns, 90 ns, and 100 ns depending on the specific part number.
No, it is designed to be programmed in-system with the standard system 3.0 V Vcc supply.
Yes, the sector mode allows each sector to be erased and reprogrammed without affecting other sectors.
