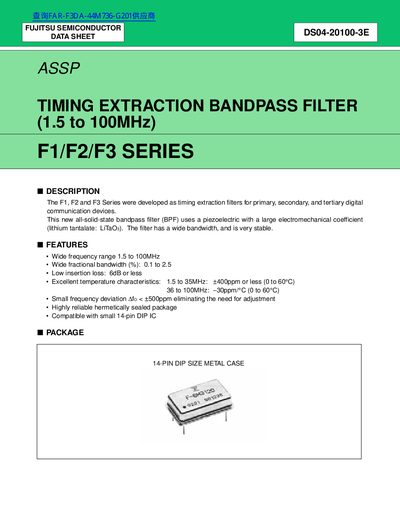

This data sheet introduces the features and characteristics of the Fujitsu F1/F2/F3 series timing extraction filters. The series filters have a wide bandwidth and good stability, and are suitable for various digital communication devices.
This document provides a technical overview of the Fujitsu F1, F2, and F3 Series timing extraction bandpass filters. These all-solid-state filters utilize lithium tantalate piezoelectric technology to offer wide bandwidths ranging from 1.5 to 100MHz with low insertion loss.
| Frequency range | 1.5 to 100MHz |
|---|---|
| Operating temperature (Ta) | -20 to 80 °C |
| Storage temperature (Tstg) | -40 to 80 °C |
| Insertion loss (IL) | 6 dB or less |
| Package type | 14-PIN DIP SIZE METAL CASE |
The standard frequency for the F3 series is 44.736MHz.
The maximum frequency deviation is +500ppm.
