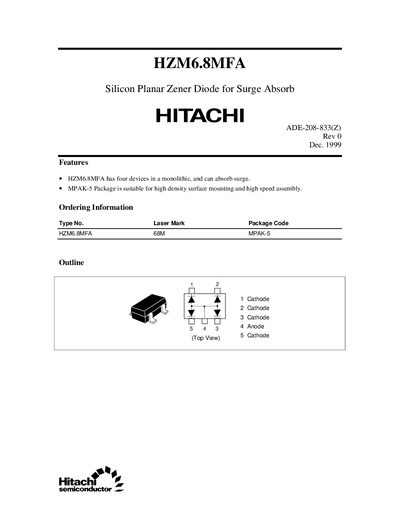

HZM6.8MFA is a silicon planar Zener diode that can absorb surge. It is packaged in a monolithic design with four devices. The MPAK-5 package is suitable for high density surface mounting and high speed assembly.
The document describes the HZM6.8MFA, a monolithic silicon planar zener diode available in an MPAK-5 package suitable for high-density surface mounting and high-speed assembly. It is designed to absorb surges and consists of four devices within a single unit.
Key technical specifications include a Zener voltage range of 6.47V to 7.00V, a maximum power dissipation of 200mW (for the total device), and an operating junction temperature up to 150°C. The datasheet also provides package dimensions for the MPAK-5 unit and outlines cautionary notes regarding usage in critical applications like aerospace or medical equipment.
| Zener Voltage (Vz) | 6.47 to 7.00 V |
|---|---|
| Power Dissipation (Pda) | 200 mW |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tsig) | -55 to +150 °C |
| Reverse Current (Ir) | _ 2 uA |
| Capacitance (Cc) | _ 130 pF |
The absolute maximum power dissipation rating is 200 mW.
This monolithic package contains four devices designed for surge absorption.
The absolute maximum junction temperature rating is 150 °C.
