This document contains information about HD14075, including dimensions, weight, and compatibility.

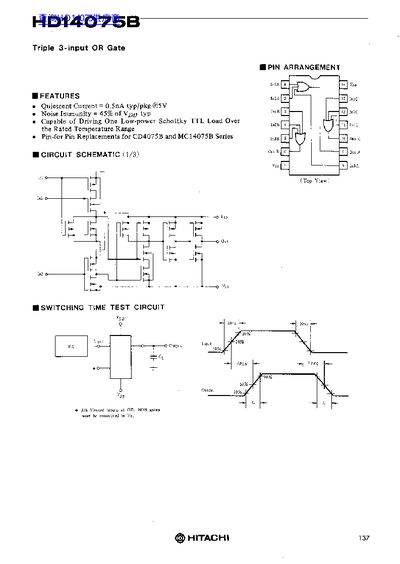

This document is a technical datasheet for the Hitachi HD14075B, a Triple 3-input OR Gate integrated circuit. It provides detailed information on the device's features, such as low quiescent current and noise immunity comparable to CD4075B and MC14075B series replacements.
The datasheet includes comprehensive electrical characteristics tables for supply voltages of 5V, 10V, and 15V, detailing output voltage levels, input thresholds, drive currents, and switching times. It also provides a pin arrangement diagram, circuit schematic, mechanical dimensions in millimeters, and standard cautionary notes regarding usage and intellectual property.
| Noise Immunity | 45% of Vpp typ |
|---|---|
| Supply Voltage Range | 5V to 15V |
| Output Rise Time (typ) @ 10V | 50 ns |
| Input Capacitance (typ) | 7 pF |
The typical quiescent current is 0.5 nA per package at 5V.
Each OR gate has three inputs, as indicated by the name Triple 3-input OR Gate.
