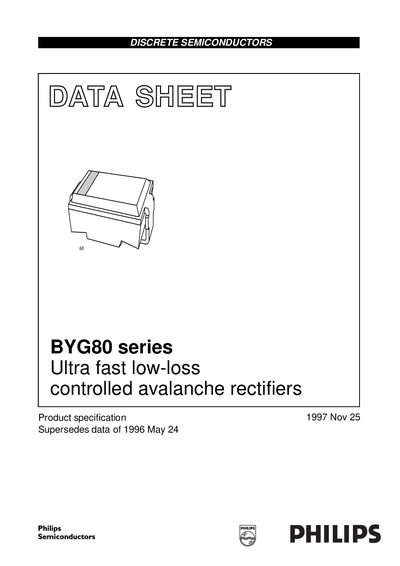

This datasheet introduces the features and characteristics of the Philips Semiconductors BYG80 series ultra fast low-loss controlled avalanche rectifiers
This document is a product specification datasheet for the Philips BYG80 series of ultra fast low-loss controlled avalanche rectifiers. It details the features of these discrete semiconductors, including glass passivation, high maximum operating temperature capability, and guaranteed avalanche energy absorption.
The text provides comprehensive limiting values and electrical characteristics for various models within the series (BYG80A through BYG80J), specifying parameters such as repetitive peak reverse voltage, average forward current under different mounting conditions, and reverse recovery time. It also includes thermal resistance data and graphical representations of permissible currents versus temperature.
| Package Type | DO-214AC surface mountable |
|---|---|
| Reverse Recovery Time (BYG80F, G, J) | Max. 50 ns |
| Thermal Resistance Junction-to-Ambient (AlO3 PCB) | 100 K/W |
The device has a high maximum operating temperature with a storage and junction temperature range of -65 to +175 °C.
The plastic package is UL 94V-O classified.
