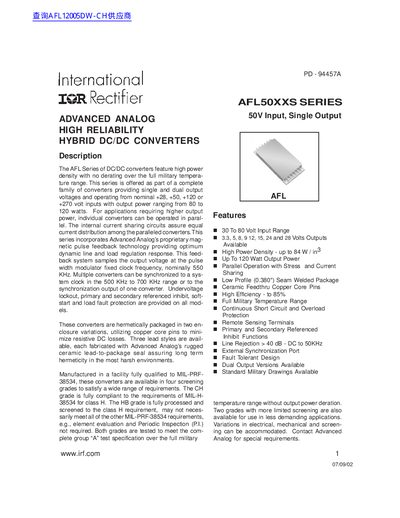

The AFL Series of DC/DC converters feature high power density with no derating over the full military temperature range. This series is offered as part of a complete family of converters providing single and dual output voltages and operating from nominal +28, +50, +120 or +270 volt inputs with output power ranging from 80 to 120 watts. For applications requiring higher output power, individual converters can be operated in parallel. The internal current sharing circuits assure equal current distribution among the paralleled converters. This series incorporates Advanced Analog’s proprietary magnetic pulse feedback technology providing optimum dynamic line and load regulation response. This feedback system samples the output voltage at the pulse width modulator fixed clock frequency, nominally 550 KHz. Multiple converters can be synchronized to a system clock in the 500 KHz to 700 KHz range or to the synchronization output of one converter. Undervoltage lockout, primary and secondary referenced inhibit, soft-start and load fault protection are provided on all models. These converters are hermetically packaged in two enclosure variations, utilizing copper core pins to minimize resistive DC losses. Three lead styles are available, each fabricated with Advanced Analog’s rugged ceramic lead-to-package seal assuring long term hermeticity in the most harsh environments.
The AFL Series of DC/DC converters feature high power density with no derating over the full military temperature range. This series is offered as part of a complete family providing single and dual output voltages, operating from nominal +28, +50, +120 or +270 volt inputs with output power ranging from 80 to 120 watts.
These converters are hermetically packaged in two enclosure variations utilizing copper core pins. They incorporate Advanced Analog's proprietary magnetic pulse feedback technology and include features such as undervoltage lockout, primary and secondary referenced inhibit, soft-start, and load fault protection.
| Input Voltage Range | 30 to 80 Volts |
|---|---|
| Output Power | Up to 120 Watt Output Power |
| Operating Temperature | -55°C to +125°C |
| Switching Frequency | 500 KHz to 600 KHz |
| Efficiency | Up to 85% |
The converters operate with a 30 to 80 Volt Input Range.
Yes, individual converters can be operated in parallel with internal current sharing circuits to assure equal distribution.
The maximum operating case temperature is +125°C.
