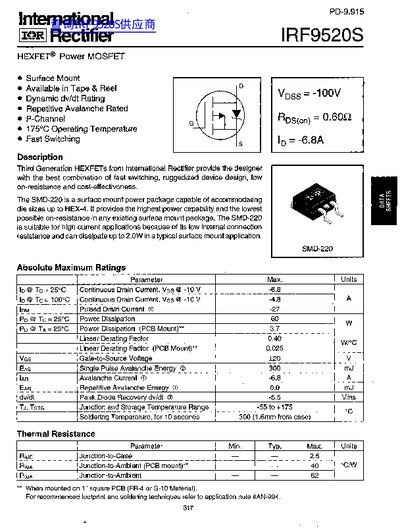

This document is a technical datasheet for the International Rectifier IRF9520S, a third-generation HEXFET P-Channel Surface Mount device. It provides comprehensive data on absolute maximum ratings, electrical characteristics, and thermal properties suitable for high current applications.
The specifications include a continuous drain current of 6.8A at 25°C, a breakdown voltage of -100V, and an operating temperature range from -56 to +175°C. The device is housed in the SMD-220 surface mount package.
| Continuous Drain Current (25°C) | -6.8A |
|---|---|
| Breakdown Voltage | -100 V |
| Operating Temperature Range | -56 to +175 °C |
| Power Dissipation (PCB Mount) | 3.0 W |
| Gate Threshold Voltage | -2.0 V |
The device uses the SMD-220 surface mount power package.
The maximum junction and storage temperature range is -56 to +175°C.
