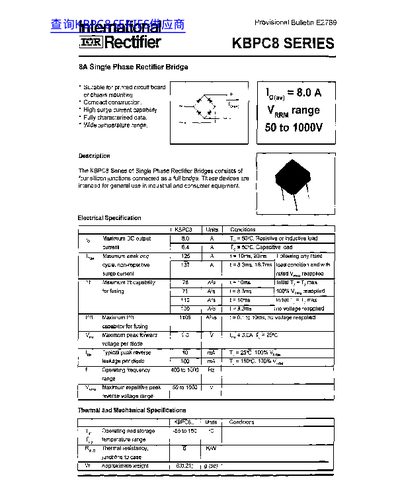

This document provides technical details for the KBPC8 series of 8A single phase rectifier bridges. These devices consist of four silicon junctions connected as a full bridge and are intended for general use in industrial and consumer equipment.
The datasheet includes comprehensive electrical specifications such as maximum DC output current, surge current ratings, and voltage capabilities ranging from 50V to 1000V. It also details thermal characteristics like operating temperature ranges and mechanical dimensions.
| Maximum DC output current | 64 A (Tj = 50°C, Resistive or inductive load) |
|---|---|
| Maximum peak surge current | 125 A (8.3ms, non-repetitive) |
| Operating temperature range | -65 to +150 °C |
| Maximum repetitive peak reverse voltage range | 50 to 1000 V |
| Operating frequency range | 400 to 1000 Hz |
The series consists of four silicon junctions connected as a full bridge.
The maximum repetitive peak reverse voltage ranges from 50 V to 1000 V.
