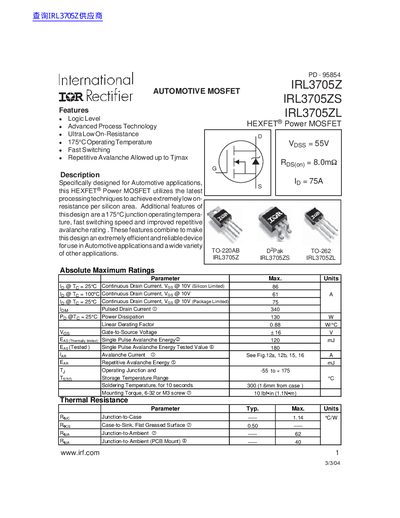

International Rectifier IRL3705Z/3705ZS/3705ZL HEXFET Power MOSFET

This document describes the features and characteristics of an automotive MOSFET product, including logic level, advanced process technology, ultra low on-resistance, high temperature operating capability, fast switching, and repetitive avalanche capability.

Brand: International Rectifier
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 12
File format: PDF
File size: 291 KB
Published: 06 June, 2012
Updated: 28 September, 2023
MD5 checksum: 05F55A4F98D4816455459483DB117DC9
PDF: International Rectifier IRL3705Z/3705ZS/3705ZL HEXFET Power MOSFET PDF

About this manual

This document is a technical datasheet for the International Rectifier HEXFET Power MOSFET, specifically models IRL3705Z, IRL3705ZS, and IRL3705ZL. The device is designed for automotive applications and utilizes advanced process technology to achieve ultra-low on-resistance per silicon area.

What's inside

Description
Absolute Maximum Ratings
Thermal Resistance
Electrical Characteristics
Source-Drain Ratings
Package Outline

Specifications

Id (Continuous Drain Current @ 25°C)	75 A
Tj (Operating Junction Temperature)	-55 to +175 °C

Frequently asked questions

What is the maximum junction operating temperature?

The device supports an operating junction temperature range of -55°C to +175°C.

What is the maximum continuous drain current at 25°C?

The package-limited continuous drain current at 25°C is 75A.
