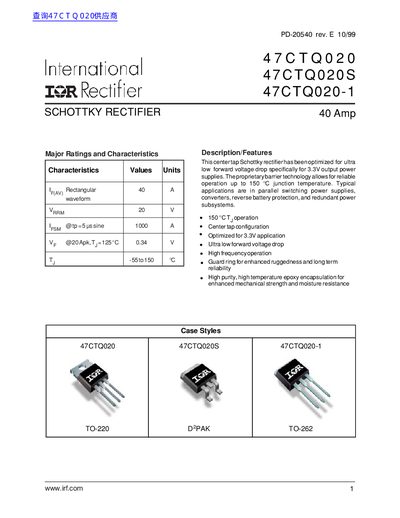

The document describes a center-tap Schottky rectifier optimized for ultra-low forward voltage drop in 3.3V output power supplies. Key features include operation up to 150°C junction temperature, high frequency capability, and enhanced ruggedness via guard ring technology.
Major ratings specify an average forward current of 40A per device (20A per leg) with a maximum DC reverse voltage of 20V at 125°C. The datasheet provides detailed electrical specifications for forward voltage drop, leakage current, and thermal resistance, along with mechanical outline drawings for TO-262 and D?PAK packages.
| Max. DC Reverse Voltage @ 125°C | 20 V |
|---|---|
| Max. Junction Temperature Range | -55 to 150 °C |
| Max. Forward Voltage Drop @ 20A, 25°C | 0.45 V |
| Max. Thermal Resistance Junction to Case (Per Leg) | 1.5 °C/W |
Typical applications include parallel switching power supplies, converters, reverse battery protection, and redundant power subsystems.
The device allows for reliable operation up to 150 °C junction temperature.
