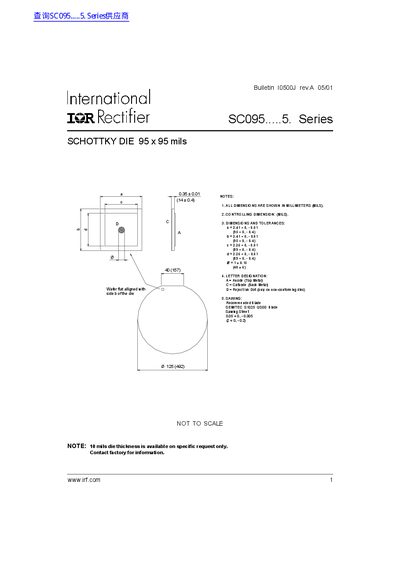

This document describes the dimensions and specifications of the SC095.5. Series, including dimensions, tolerances, materials, and packaging.
This document is a technical datasheet for the International Rectifier SC095 series of Schottky die. It provides detailed specifications including device codes, voltage ratings, forward current capabilities, and package styles such as TO-220.
The datasheet also outlines mechanical dimensions in both millimeters and mils, metallization details for wire bonding or soldering, and packaging options like wafer on film or waffle packs. It includes ordering information tables to help identify specific process types (H, R, S) and voltage codes.
| Die Size | 95 x 95 mils |
|---|
The recommended blade is SEMITEC $1025 QS00 Blade.
The shelf life for parts stored in original containers with dessicated nitrogen is 2 years.
