60MT.KB and 70MT.KB series are a range of extremely compact, encapsulated three phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general purpose and heavy duty applications.

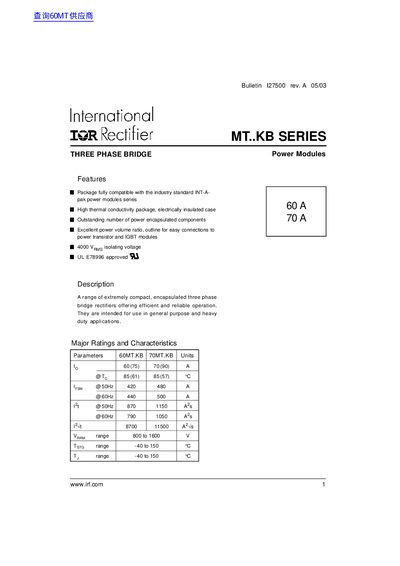

This document provides a technical overview of the International Rectifier MT.KB Series, which consists of compact, encapsulated three-phase bridge rectifiers. These devices are designed for general purpose and heavy duty applications, featuring high thermal conductivity packages that are electrically insulated and compatible with industry-standard power modules.
| Average DC output current (60MT.KB) | 60 A |
|---|---|
| Average DC output current (70MT.KB) | 70 A |
| Maximum junction operating temperature range | -40 to 150 °C |
| RMS isolation voltage | 4000 V |
| Maximum forward voltage drop (60MT.KB) | 1.75 V |
The device can be stored in a temperature range from -40 to 150 °C.
The recommended mounting torque to the heatsink is between 4 and 6 Nm.
