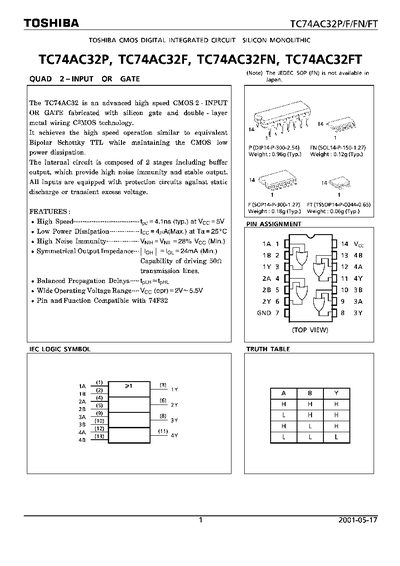

This document is a datasheet for the Toshiba TC74AC32P/F/FN/FT family of Quad 2-Input OR Gates. The device utilizes advanced high-speed CMOS technology with silicon gates and double-layer metal wiring to achieve speeds comparable to Bipolar Schottky TTL while maintaining low power dissipation.
| Propagation Delay Time (typ) | 4.1ns at Vcc = 5V |
|---|---|
| Supply Voltage Range | 2.0~5.5 V |
| Operating Temperature | -40~85 °C |
| Power Dissipation (DIP) | 500 mW |
No, the JEDEC SOP (FN) is not available in Japan.
The typical propagation delay is 4.1ns.
