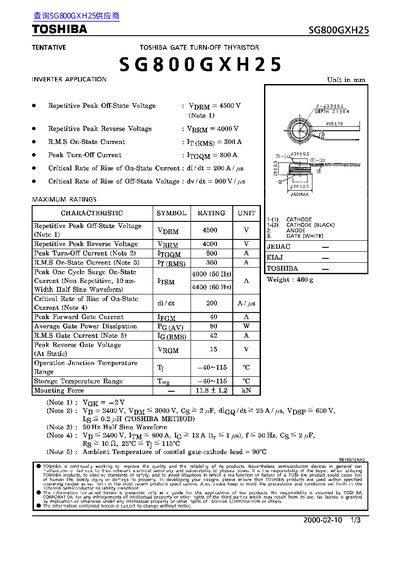

This document provides a datasheet for the Toshiba SG800GXH25, a gate turn-off thyristor intended for use in inverter applications. Key maximum ratings include a repetitive peak off-state voltage of 4500 V and an RMS on-state current of 300 A.
| Repetitive Peak Off-State Voltage (VDRM) | 4500 V |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 4000 V |
| RMS On-State Current (IT(RMS)) | 300 A |
| Peak Turn-Off Current (ITGQM) | 800 A |
| Critical Rate of Rise of On-State Current (di/dt) | 200 A/us |
The critical rate of rise of on-state current is 200 A/ us.
