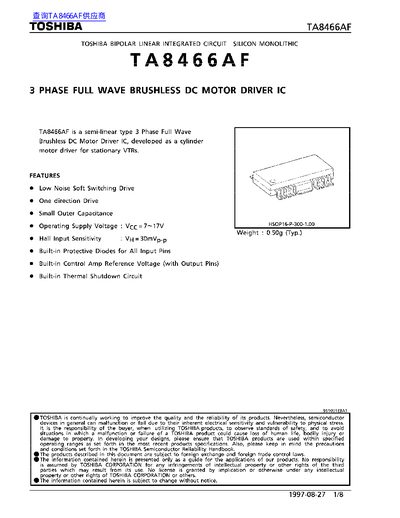

The document describes the Toshiba TA8466AF, a silicon monolithic integrated circuit functioning as a 3-phase full-wave brushless DC motor driver. It is specifically developed as a cylinder motor driver for stationary VTR applications and features low noise soft switching drive with one-direction capability.
Key characteristics include built-in protective diodes for all input pins, a thermal shutdown circuit, and an operating supply voltage range of 7V to 17V. The IC utilizes Hall element inputs for position detection and includes feedback circuits for output currents.
| Supply Voltage | 7~17V |
|---|---|
| Operating Temperature | -30~75 °C |
| Hall Input Sensitivity | 30mVp-p |
The TA8466AF is a driver IC developed specifically for use as a cylinder motor driver in stationary VTRs.
The device supports a maximum supply voltage of 18 V and can handle an output current up to 0.7 A.
The TA8466AF operates within a temperature range of -30 to 75 °C.
