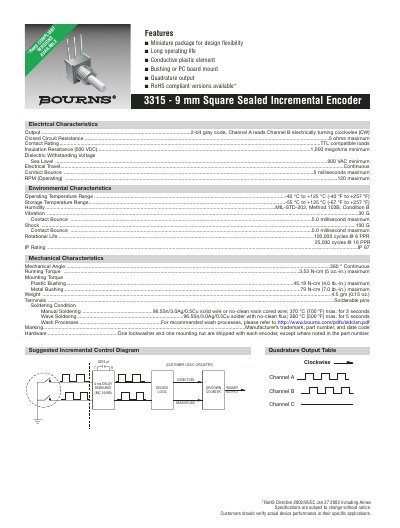

3315 - 9 mm Square Sealed Incremental Encoder is a sensor with miniature package, long operating life, conductive plastic element, bushing or PC board mount, quadrature output, RoHS compliant versions
The document describes the Bourns 3315 Series, a line of 9 mm square sealed incremental encoders designed for applications requiring design flexibility. Key features include a long operating life, conductive plastic elements, and compatibility with bushing or PC board mounting methods.
These encoders provide quadrature output using a 2-bit gray code where Channel A leads Channel B electrically when turning clockwise. The device is available in RoHS compliant versions and offers various shaft end designs (slotted or flatted) and terminal styles to suit different circuit requirements.
| Output Code | 2-bit gray code |
|---|---|
| Operating Temperature Range | -40 °C to +125 °C |
| Rotational Life (6 PPR) | 100,000 cycles |
| IP Rating | IP 67 |
| Weight | 4.5 gm |
The encoder uses a 2-bit gray code output.
Yes, RoHS compliant versions are available for the 3315 series.
