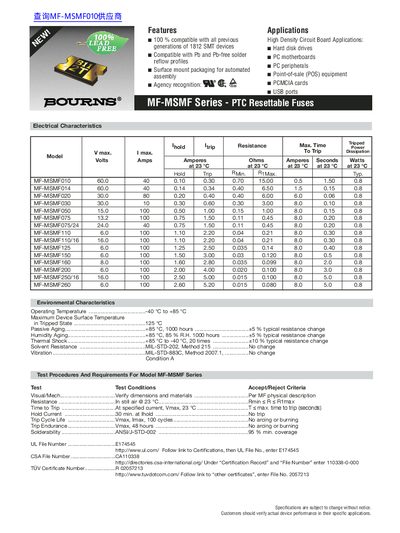

Bourns MF-MSMF Series PTC Resettable Fuses Datasheet

This file is the electrical characteristics of the MF-MSMF010 to MF-MSMF260 series fuses.

Brand: Bourns
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 140 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: F9D4E453DB6C014E33CF62E74091AFC7
PDF: Bourns MF-MSMF Series PTC Resettable Fuses Datasheet PDF

About this manual

The document provides a comprehensive overview of the Bourns MF-MSMF Series PTC Resettable Fuses. It lists key features such as 100% compatibility with previous generations of 1812 SMT devices and support for both Pb and Pb-free solder reflow profiles. The series is designed for applications including hard disk drives, PC motherboards, peripherals, POS equipment, and USB ports.

What's inside

Features
Applications
Electrical Characteristics
Environmental Characteristics
Product Dimensions
Packaging
Solder Reflow Recommendations
How to Order

Specifications

Operating Temperature Range	-40 °C to +85 °C
Standard Footprint Size	1812 mm (4532 mils)

Frequently asked questions

Are these fuses compatible with Pb-free solder?

Yes, the devices are compatible with both Pb and Pb-free solder reflow profiles.

Can these fuses be wave soldered?

No, MF-MSMF models cannot be wave soldered.
