The SRR0604 series shielded power inductors are available in E6 series, have a low unit height of 4.8 mm and high current. They are RoHS compliant and are used in DC/DC converters' input/output, as well as in power supplies for portable communication equipment, camcorders, LCD TVs and car radios.

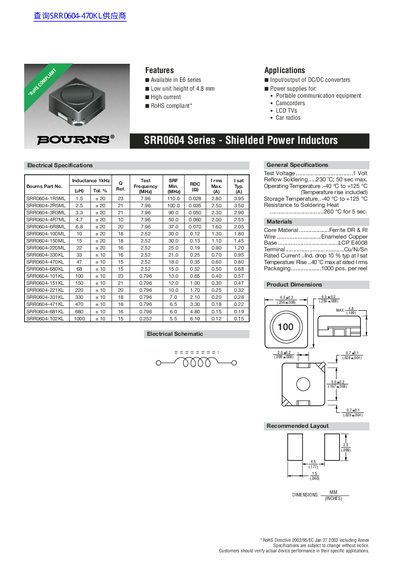

This document provides technical data for the Bourns SRR0604 Series Shielded Power Inductors. It lists available part numbers with varying inductance values from 1.5 µH to 1000 µH, along with their tolerance, self-resonant frequency (SRF), and DC resistance.
The datasheet includes general specifications such as operating temperature range (-40°C to +125°C) and reflow soldering limits. It also provides mechanical dimensions in millimeters and inches, recommended PCB layout guidelines, and packaging details indicating 1000 pieces per reel.
| Operating Temperature Range | -40 C to +125 °C |
|---|---|
| Storage Temperature Range | -40 °C to +125 °C |
| Reflow Soldering Limit | 260 °C for 5 sec. |
| Temperature Rise at Rated Current | 40 °C max |
| Packaging Quantity | 1000 pcs. per reel |
The inductors operate within a range from -40 °C to +125 °C.
The SRR0604 Series Shielded Power Inductors have a low unit height of 4.8 mm.
These inductors operate from -40 C to +125 °C and can be stored within the same range.
The inductors are designed for a maximum temperature rise of 40 °C at their rated current.
