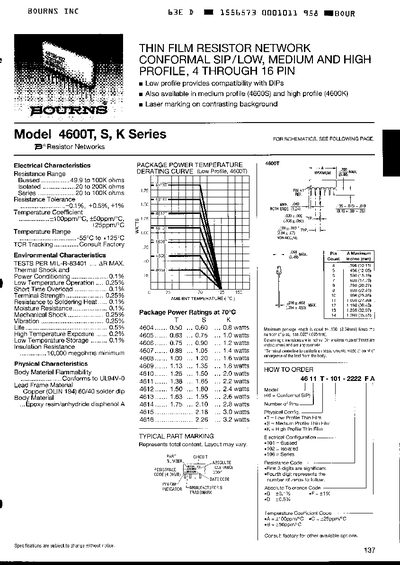

This document provides technical data for the Bourns Model 4600T, S, and K Series Thin Film Resistor Networks. These components are available in low, medium, and high profiles with 4 through 16 pins, featuring laser marking on a contrasting background.
The datasheet details three primary electrical configurations: Isolated (102 Circuit), Bussed (101 Circuit), and Series (106 Circuit). It specifies resistance ranges from 20 to 200K ohms for isolated circuits and up to 100K ohms for bussed or series connections, along with power ratings varying by profile type.
| Resistance Range (Isolated) | 20 to 200K ohms |
|---|---|
| Resistance Range (Bussed/Series) | 49.9 to 100K ohms |
| Temperature Coefficient | +100ppm/°C, +50ppm/°C, ±25ppm/°C |
| Operating Temperature Range | -55°C to +125°C |
| Insulation Resistance | 10,000 megohms minimum |
| Body Material Flammability | Conforms to UL94V-0 |
The series is available in low profile (4600T), medium profile (4600S), and high profile (4600K).
The resistance range for isolated circuits is 20 to 200K ohms.
