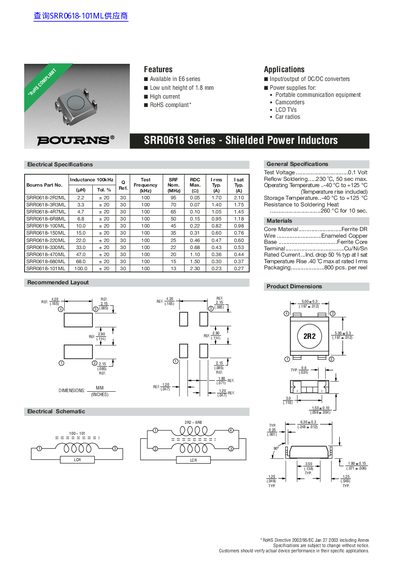

SRR0618 Series Shielded Power Inductors Features: available in E6 series, low unit height of 1.8 mm, high current, RoHS compliant*. Applications: input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, LCD TVs and car radios.
This document provides technical data for the Bourns SRR0618 Series Shielded Power Inductors. It lists available part numbers with specific inductance values and tolerances, along with key electrical parameters such as saturation current, DC resistance, and self-resonant frequency.
The datasheet also includes general specifications regarding operating temperature ranges, soldering profiles, and core materials. Additionally, it provides recommended layout guidelines, product dimensions, and packaging specifications for the 800-piece reels.
| Operating Temperature Range | -40 °C to +125 °C |
|---|---|
| Core Material | Ferrite DR |
| Wire Type | Enameled Copper |
| Base Material | Ferrite Core |
| Terminal Type | Cu/Ni/Sn |
| Packaging Quantity | 800 pcs. per reel |
The inductors operate within a temperature range of -40 °C to +125 °C.
The devices operate from -40 °C to +125 °C, with a maximum temperature rise of 40 °C at rated current.
Each reel contains 800 pcs. of the SRR0618 series inductors.
The components can withstand 230° C for a maximum of 50 sec.
