The SDR0602 series is a high power inductor from Bourns. It has the following features: available in E12 series, unit height of 2.2 mm, current up to 1.5 A, high Q level, lead free version available, lead free versions are RoHS compliant. SDR0602 series can be used for DC/DC converters input/output and power supplies.

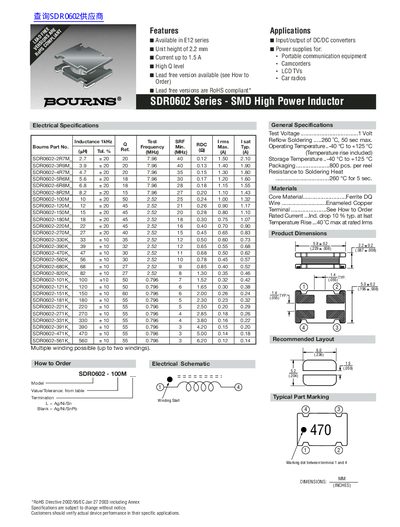

This document provides a technical overview of the Bourns SDR0602 Series, which are Surface Mount Device (SMD) High Power Inductors. The datasheet details available inductance values ranging from 2.7uH to 560uH with various tolerances and current ratings up to 1.5A.
| Unit height | 2.22 mm |
|---|---|
| Max Current | 1.5A |
| Operating Temperature Range | -40 °C to +125 °C |
| Packaging Quantity | 800 pcs. per reel |
Yes, lead-free versions are available and RoHS compliant.
The maximum reflow soldering temperature is 260 °C for a duration of 50 seconds.
