The SND Series DIP Switch (Machine Insertable Type) features double contacts, low contact resistance, self-clean on contact area, splay terminals for automatic insertion by IC insertion machine, and is RoHS compliant.

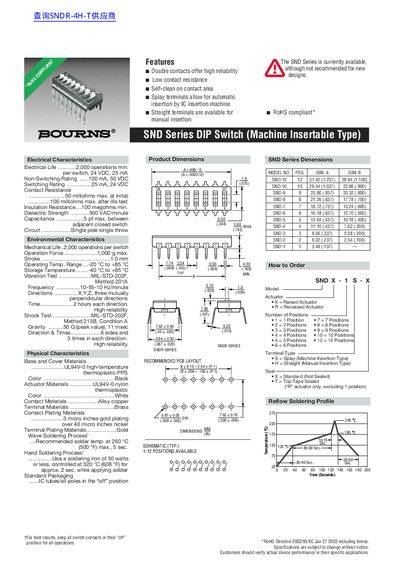

This document provides technical data for the Bourns SND Series of double-contact DIP switches designed for machine insertion. It covers electrical characteristics such as contact resistance and switching ratings, alongside environmental limits including operating temperature ranges from 0 °C to +85 °C.
The datasheet includes physical specifications like base materials (UL94V-0 PPS or nylon) and terminal plating details. It also offers ordering information for various configurations of positions, actuator types (raised or recessed), and seal options.
| Mechanical Life | 2,000 operations min. |
|---|---|
| Switching Rating | 25 mA, 24 VDC |
| Contact Resistance (Initial) | 50 milliohms max. |
| Operating Temp. Range | 0 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
The switch operates within a temperature range of 0 °C to +85 °C.
The maximum recommended soldering temperature is 260 °C.
