This document provides specifications of CAT16-1003F2 supplier, including dimensions and performance.

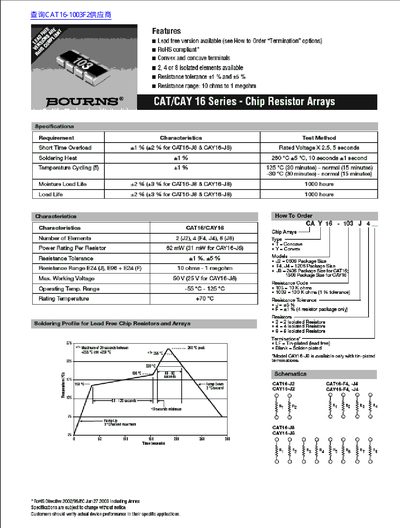

This document provides technical data for the Bourns CAT/CAY 16 Series of chip resistor arrays. It covers key features such as RoHS compliance, resistance ranges from 10 ohms to 1 megohm, and available tolerance options of +1% and +5%. The series includes various configurations with 2, 4, or 8 isolated elements.
| Resistance Range | 10 ohms to 1 megohm |
|---|---|
| Resistance Tolerance | +1 % and +5 % |
| Operating Temp. Range | -55 °C - 126 °C |
| Power Rating Per Resistor | 62 mW (37 mW for GAY 6-8) |
| Max. Working Voltage | 50V (25 V for GAY 6-J5) |
Yes, the document lists them as RoHS compliant.
The LF option is designated for Tin-plated (lead free) terminations.
