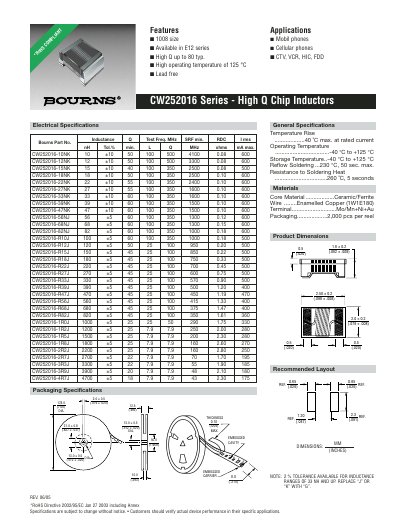

This document is the specification sheet of CW252016 series high Q chip inductors. This series inductors have 1008 size, E12 series, high Q, high operating temperature (125 °C) and lead free features, and can be applied to mobile phones, cellular phones, CTV, VCR, HIC and FDD devices.
The document describes the Bourns CW252016 Series High Q Chip Inductors. Key features include a 1008 package size, availability in E12 series values, and a typical high Q factor of up to 80. The components are designed for high operating temperatures up to 125 °C.
| Package Size | 1008 size |
|---|---|
| Operating Temperature Range | -40 °C to +125 °C |
| Storage Temperature Range | -40 °C to +125 °C |
| Reflow Soldering Temp/Time | 230 °C, 50 sec. max. |
| Resistance to Soldering Heat | 260 °C, 5 seconds |
| Temperature Rise (Max) | 40 ˚C max. at rated current |
| Core Material | Ceramic/Ferrite |
| Wire Type | Enamelled Copper (1W1E180) |
| Terminal Material | Mo/Mn+Ni+Au |
| Packaging Quantity | 2,000 pcs per reel |
They are suitable for mobile phones, cellular phones, CTV, VCR, HIC, and FDD.
The inductors can operate at temperatures up to 125 °C.
