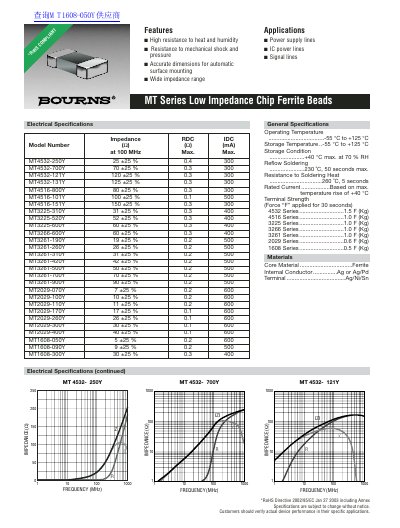

This document describes the features of the MT Series Low Impedance Chip Ferrite Beads, including resistance to heat, humidity, mechanical shock, and pressure. It is suitable for applications such as power supply lines, IC power lines, and signal lines.
The document details the features of the MT Series Low Impedance Chip Ferrite Beads, highlighting their high resistance to heat, humidity, and mechanical shock. It lists various models across different size series (4532, 4516, 3225, etc.) with specific impedance values at 100 MHz, DC resistance, and maximum current ratings.
| Operating Temperature Range | -55 °C to +125 °C |
|---|---|
| Storage Temperature Range | -55 °C to +125 °C |
| Reflow Soldering Condition | 230 ˚C, 50 seconds max. |
| Resistance to Soldering Heat | 260 ˚C, 5 seconds |
| Core Material | Ferrite |
They are suitable for power supply lines, IC power lines, and signal lines.
The maximum storage humidity is 70% RH at +40 °C.
