SRR0618 series shielded power inductors have the characteristics of low unit height, high current, RoHS compliance, etc. It is suitable for DC/DC converter input/output, portable communication equipment, camcorders, LCD TVs, car radios, etc. Power supplies

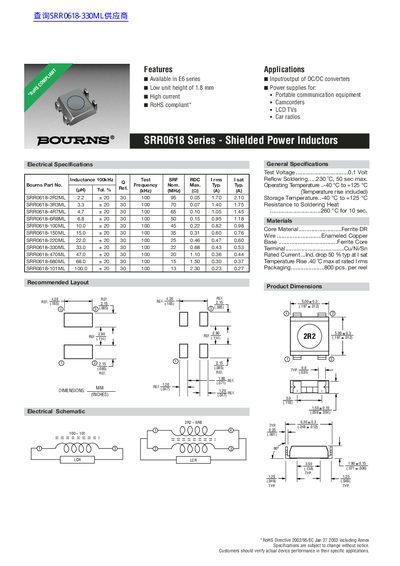

This document provides technical data for the Bourns SRR0618 Series Shielded Power Inductors. It lists available part numbers with varying inductance values from 2.2 µH to 100 µH, along with their tolerance, saturation current, and DC resistance.
| Test Frequency | 100kHz |
|---|---|
| Operating Temperature Range | -40 °C to +125 °C |
| Reflow Soldering Temp | 230° C, 50 sec max. |
| Core Material | Ferrite DR |
| Wire Type | Enameled Copper |
| Base Material | Ferrite Core |
| Terminal Type | Cu/Ni/Sn |
| Packaging Quantity | 800 pcs. per reel |
The inductors operate from -40 °C to +125 °C.
The maximum temperature for reflow soldering is 230° C for a duration of 50 seconds.
