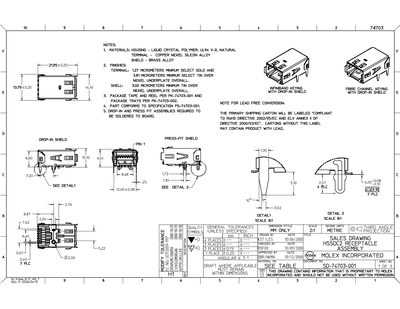

This sales drawing provides the mechanical and material specifications for the Molex HSSDC2 Receptacle Assembly. It lists the housing, terminal and shield materials, required surface finishes, and recommended PCB layout and stencil guidelines.
The document also includes packaging options (tape‑and‑reel or trays) and notes RoHS compliance labeling for the primary shipping carton. All dimensions and keep‑out areas are shown to aid proper board design.
| Housing material | Liquid crystal polymer, UL94 V‑0, natural |
|---|---|
| Terminal material | Copper nickel silicon alloy |
| Shield material | Brass alloy |
| Packaging – tape and reel | PK‑74703‑001 |
| Packaging – trays | PK‑74703‑002 |
The housing is made of liquid crystal polymer, UL94 V‑0, natural.
It can be supplied on tape and reel (PK‑74703‑001) or in trays (PK‑74703‑002).
