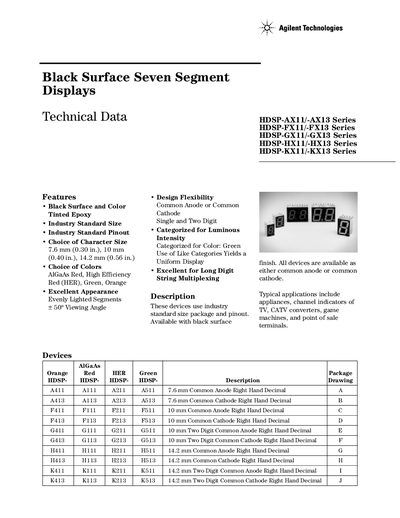

This document lists the features and characteristics of the HDSP-AX11/-AX13 series and HDSP-FX11/-FX13 series black surface seven segment displays, including size, color, brightness, etc.
The Agilent HDSP‑AX11/AX13 series are black‑surface, seven‑segment LED displays offered in single‑digit (7.6 mm, 10 mm, 14.2 mm) and dual‑digit formats. They are available in common anode or common cathode configurations and support multiple colors: AlGaAs Red, High‑Efficiency Red, Green and Orange.
The data sheet provides part‑numbering, mechanical and color‑bin options, package dimensions for each size, absolute maximum ratings, and typical electrical/optical characteristics such as luminous intensity, forward current and temperature ranges.
| Character size | 7.6 mm, 10 mm, 14.2 mm |
|---|---|
| Available colors | AlGaAs Red, High‑Efficiency Red (HER), Green, Orange |
| Average power per segment | 37 mW (AX series), 105 mW (FX/GX series) |
| Operating temperature range | -20 °C to +100 °C (AX), -40 °C to +100 °C (FX) |
The displays are offered in 7.6 mm, 10 mm and 14.2 mm character sizes.
The AX series operates from –20 °C to +100 °C, while the FX series operates from –40 °C to +100 °C.
The displays can be supplied in AlGaAs Red, High‑Efficiency Red, Green, or Orange.
