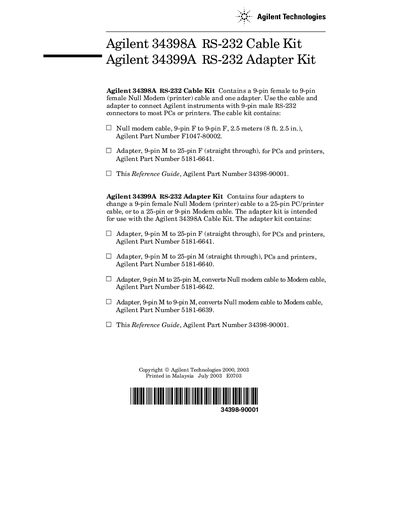

This document provides an introduction to Agilent 34398A RS-232 Cable Kit and Agilent 34399A RS-232 Adapter Kit, including product components, applicable products and usage instructions.
The Agilent 34398A RS‑232 Cable Kit provides a 9‑pin female‑to‑female null‑modem cable (2.5 m) and a 9‑pin male‑to‑25‑pin female adapter for connecting Agilent instruments to PCs or printers. The 34399A Adapter Kit adds four additional adapters for converting the cable to 25‑pin or 9‑pin modem configurations.
The guide lists the part numbers, shows pin‑connection diagrams for each adapter, and lists Agilent instruments that have been tested with the kits, such as the 33120A Function Generator and the 34401A Multimeter.
| Cable length | 2.5 meters (8 ft 2.5 in) |
|---|---|
| Cable type | 9‑pin female to 9‑pin female null‑modem (printer) cable |
| Reference guide part number | 34398‑90001 |
It includes a 9‑pin female‑to‑female null‑modem cable (2.5 m) and a 9‑pin male‑to‑25‑pin female adapter.
The 33120A Function Generator, the 34401A Multimeter, and the 53131A Universal Counter have been tested.
The pin‑out diagrams are provided in the "Cable and Adapter Pin Diagrams" section of the guide.
