Agilent HFBR-0400, HFBR-14xx, and HFBR-24xx series are low-cost, miniature fiber optic components that provide high-performance fiber optic communication links for information systems and industrial applications with link distances of up to 2.7 kilometers. They are compatible with popular industry-standard connectors, including ST®, SMA, SC, and FC. The components are specified with multiple fiber sizes, including 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm. The HFBR-14x4 high-power transmitter and HFBR-24x6 125 MHz receiver are optimized for 100 Base-SX. Complete evaluation kits and connectored cables are available for ST product offerings.

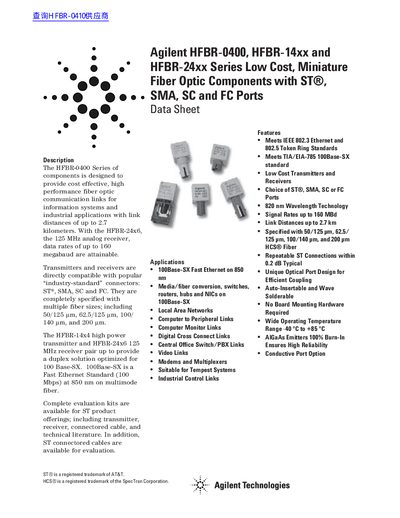

This document provides a datasheet for the Agilent HFBR-0400 series of low-cost, miniature fiber optic components. The series includes transmitters (HFBR-14xx) and receivers (HFBR-24xx) designed to provide cost-effective, high-performance communication links for information systems and industrial applications.
| Wavelength Technology | 820 nm |
|---|---|
| Signal Rates | up to 160 MBd |
| Operating Temperature Range | -40 °C to +85 °C |
The components are specified with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm fibers.
Data rates of up to 160 megabaud are attainable.
The wide operating temperature range is from -40 °C to +85 °C.
