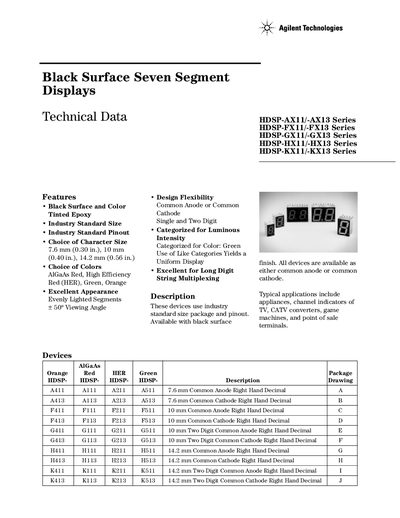

This document is the technical data manual of HDSP-AX11/-AX13 Series HDSP-FX11/-FX13 Series Black Surface Seven Segment Displays
This document provides technical specifications for the HDSP-AX11 through HDSP-KX13 series of Black Surface Seven Segment Displays. The devices are available in various character sizes (7.6 mm, 10 mm, and 14.2 mm) with choices of color including AlGaAs Red, High Efficiency Red (HER), Green, and Orange.
| Character Size Options | 7.6 mm (0.30 in.), 10 mm (0.40 in.), 14.2 mm (0.56 in.) |
|---|---|
| Available Colors | AlGaAs Red, High Efficiency Red (HER), Green, Orange |
| Configuration Options | Common Anode or Common Cathode |
| Operating Temperature Range (HDSP-X11X) | -20 to +100 °C |
| Storage Temperature Range | -55 to +100 °C |
Yes, devices are available as either common anode or common cathode in single and two digit configurations.
The displays come in three standard sizes: 7.6 mm (0.30 in.), 10 mm (0.40 in.), and 14.2 mm (0.56 in.).
The devices can operate within a temperature range of -20 to +100 °C.
