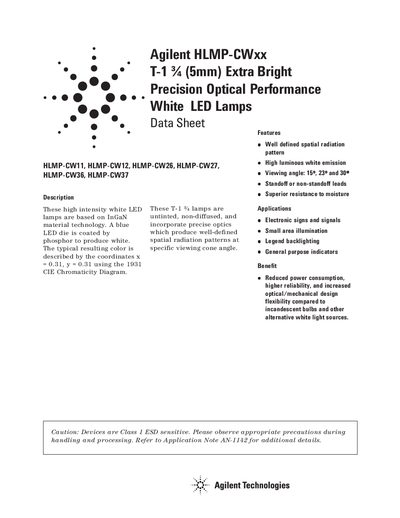

These high intensity white LED lamps are based on InGaN material technology. A blue LED die is coated by phosphor to produce white. The typical resulting color is described by the coordinates x = 0.31, y = 0.31 using the 1931 CIE Chromaticity Diagram. The lamps have a well defined spatial radiation pattern and high luminous white emission.
The HLMP‑CWxx series are high‑intensity white LED lamps based on InGaN technology. They feature well‑defined spatial radiation patterns, multiple viewing‑angle options (15°, 23°, 30°), and superior moisture resistance, making them suitable for electronic signs, backlighting, and general‑purpose indicators.
The sheet provides detailed mechanical dimensions, part‑numbering options, electrical characteristics such as forward voltage (typ 4.0 V at 20 mA) and maximum forward current (30 mA DC, 100 mA pulsed), and optical data including chromaticity coordinates (x = 0.31, y = 0.31) and intensity bins ranging from 1 150 mcd to 21 000 mcd.
| Forward voltage (typical) | 4.0 V |
|---|---|
| Reverse voltage | 5.0 V |
| DC forward current (max) | 30 mA |
| Peak pulsed forward current | 100 mA |
| Power dissipation | 105 mW |
| LED junction temperature (max) | 110 °C |
| Operating temperature range | -40 to +85 °C |
| Storage temperature range | -40 to +100 °C |
| Viewing angles | 15°, 23°, 30° (depending on option) |
The lamps are offered with 15°, 23°, or 30° viewing angles, selectable via part‑number options.
The datasheet specifies a maximum DC forward current of 30 mA and a peak pulsed forward current of 100 mA.
The device operates from –40 °C to +85 °C and can be stored from –40 °C to +100 °C.
