This document describes the technical data and features of the 14.2 mm (0.56 inch) LED seven segment displays. The product has an industry standard size and pinout, and offers a choice of colors including AlGaAs Red, High Efficiency Red, Yellow, Green, and Orange. The segments are evenly lighted with mitered corners, and the display has a ± 50° viewing angle. The product is designed for high light output and high peak current, making it excellent for long digit string multiplexing. The intensity and color can be selected, ensuring a uniform display. Additionally, the AlGaAs material used in the product makes it sunlight viewable.

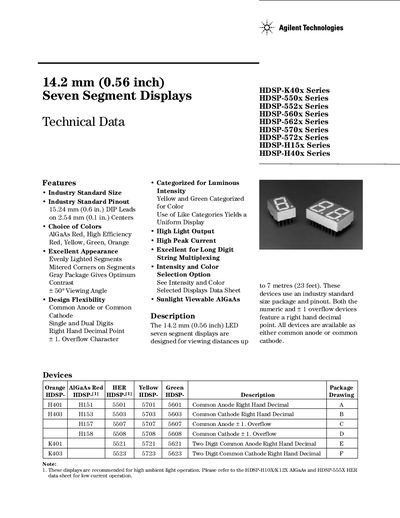

This document provides technical data and specifications for a series of 14.2 mm (0.56 inch) seven segment LED displays from Agilent. The displays are available in various configurations such as common anode or cathode, with options for right-hand decimal points and ±1 overflow characters.
The datasheet details features including industry standard size and pinout, choice of colors (AlGaAs Red, High Efficiency Red, Yellow, Green, Orange), and excellent appearance. It includes information on intensity and color bins, operating temperature ranges, soldering instructions, and electrical/optical characteristics for different device series.
| Display Size | 14.2 mm (0.56 inch) |
|---|---|
| Package Type | 15.24 mm (0.6 in.) DIP Leads |
| Viewing Angle | ±50° |
| Storage Temperature Range | -55 to +100 °C |
| Reverse Voltage per Segment or DP (AlGaAs Red) | 3.0 V |
| Peak Wavelength (High Efficiency Red) | 635 nm |
| Forward Voltage per Segment or DP (Yellow) | 2.1 to 2.5 V |
The displays are available in AlGaAs Red, High Efficiency Red, Yellow, Green, and Orange.
The leads have a 2.54 mm (0.1 in.) center spacing.
