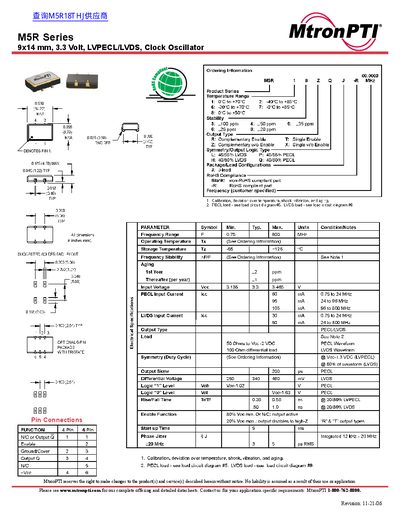

This document provides detailed information on the MtronPTI M5R series 9x14mm, 3.3 Volt, LVPECL/LVDS, clock oscillator.
The M5R Series is a 9 × 14 mm, 3.3 V LVPECL/LVDS clock oscillator offered by MtronPTI. It is available in a standard 4‑pin package and an optional 6‑pin package with tristate capability. The document lists pin functions, recommended solder pad dimensions, and ordering codes for various temperature and stability grades.
Key specifications include a frequency range of 0.75 – 800 MHz, input voltage tolerance of 3.135 – 3.465 V, and detailed electrical characteristics for both PECL and LVDS output types. Temperature ranges, aging data, and compliance information (RoHS) are also provided, along with a lead‑free solder profile for assembly.
| Frequency Range | 0.75 – 800 MHz |
|---|---|
| Input Voltage | 3.135 – 3.465 V |
| PECL Input Current (0.75‑24 MHz) | 60 mA |
| LVDS Input Current (0.75‑24 MHz) | 30 mA |
| Output Skew (PECL) | 200 ps |
| Differential Voltage (LVDS) | 250 – 450 mV |
The M5R Series operates from 0.75 MHz up to 800 MHz.
The suggested solder pad layout uses a 0.200 in (5.08 mm) pad length and a 0.080 in (1.27 mm) pad width.
It requires a supply voltage between 3.135 V and 3.465 V.
Both RoHS‑compliant and non‑RoHS parts are offered; the RoHS‑compliant part is marked with an “R”.
