MV series 14 DIP, 5.0 Volt, HCMOS/TTL, VCXO General purpose VCXO for Phase Lock Loops (PLLs), Clock Recovery, Reference Signal Tracking, and Synthesizers Frequencies up to 160 MHz Tri-state Option Available

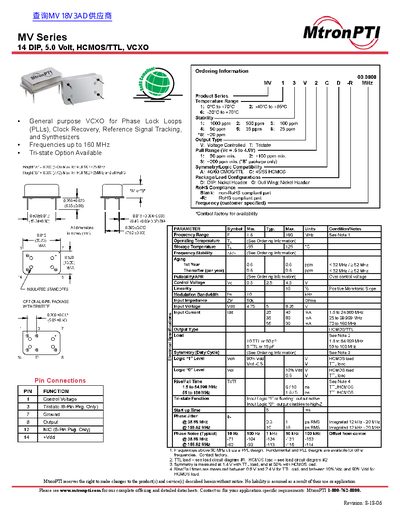

This document is a datasheet for the MtronPTI MV Series Voltage Controlled Crystal Oscillators (VCXOs). These components are designed as general-purpose devices suitable for Phase Lock Loops (PLLs), Clock Recovery, Reference Signal Tracking, and Synthesizers. The series supports frequencies up to 160 MHz and offers a tri-state option available in the 6-pin package configuration.
| Frequency Range | 15 to 160 MHz |
|---|---|
| Control Voltage Range | 0.5 to 4.5V |
| Input Impedance | 50k Ohms |
The maximum frequency for the MV Series is up to 160 MHz.
The device supports frequencies up to a maximum of 160 MHz.
The control voltage must be between 0.5 V and 4.5 V.
The input current reaches a maximum of 90 mA in this frequency range.
