This document is about the detailed description of the MtronPTI company's F17250B/F17350B and F17255B/F17355B series 9x14 mm FR-4, 5.0 or 3.3 volt, PECL, VCXO pin connections product.

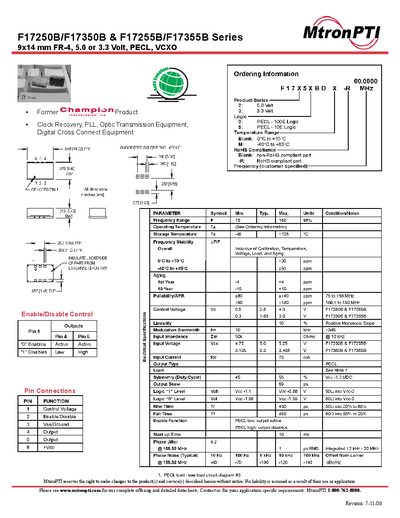

This document is a datasheet for the MtronPTI F17250B/F17350B and F17255B/F17355B series of 9x14 mm VCXOs. The components operate at either 5.0 or 3.3 volts with PECL logic output and are designed for applications such as clock recovery, PLLs, and optic transmission equipment.
Key specifications include a frequency range of 75 to 180 MHz and operating temperatures from -40°C to +85°C (industrial grade). The device features an enable/disable control function via Pin 3 and provides output phase jitter of 1 ps RMS at 155.52 MHz.
| Package Size | 9x14 mm |
|---|---|
| Logic Type | PECL |
| Frequency Range | 75 to 180 MHz |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Output Type | PECL |
| Phase Jitter (Typical) | 1 ps RMS |
The frequency range is from 75 to 180 MHz.
Yes, the document indicates RoHS Compliance for standard parts.
The typical output phase jitter is 1 ps RMS.
