pj surface mount crystals 5.5 x 11.7 x 2.2 mm

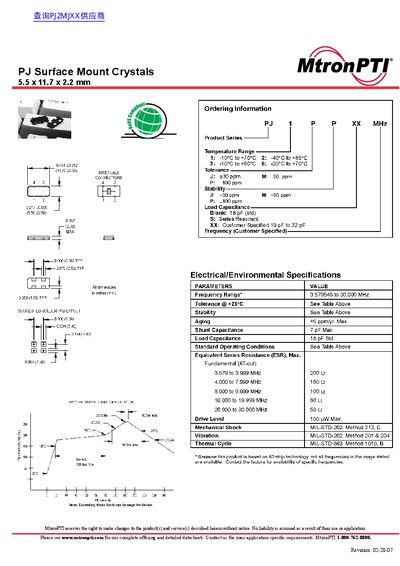

This document provides technical details for the MtronPTI PJ series of surface mount crystals. It includes mechanical drawings with suggested pad layouts and lists available temperature ranges, tolerances, and stability options.
The datasheet specifies electrical parameters such as frequency range (3.579545 to 30 MHz), drive levels, and equivalent series resistance based on frequency bands. It also details environmental specifications including shock, vibration, and thermal cycle ratings.
| Dimensions | .5 x 11.7 x 2.2 mm |
|---|---|
| Frequency Range | 3.579545 to 30.000 MHz |
| Standard Load Capacitance | 18 pF |
| Aging | +5 ppm/yr. Max. |
| Shunt Capacitance | 7 pF Max. |
The crystals measure 5.5 x 11.7 x 2.2 mm.
The maximum drive level is 100 pW.
The preheat time must be 180 seconds maximum.
