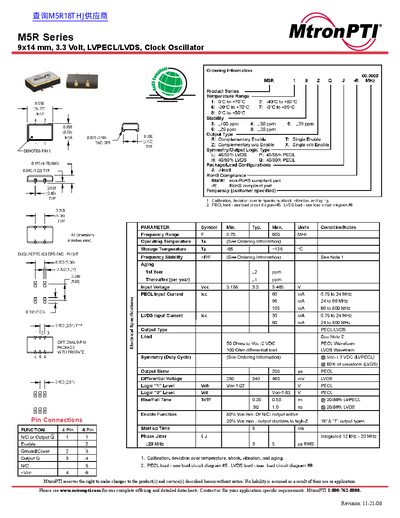

MtronPTI M5R Series Clock Oscillator Datasheet
Datasheet 2 pages · 233 KB · EN
The document describes the M5R Series of clock oscillators manufactured by MtronPTI. These devices operate at a voltage of 3.3 Volts and support both LVPECL and LVDS output logic types. The available package sizes are 9x14 mm with a 6-pin configuration, or an optional 6-pin package featuring tristate functionality.
Read onlineMtronPTI M5R specifications
| Operating Voltage | 3.3 Volt |
|---|---|
| Frequency Range | 0.75 to 800 MHz |
| Operating Temperature | -55 to +125 °C |
| Package Size | 9x14 mm |
All MtronPTI M5R documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What output types are supported by the M5R Series?
The device supports both PECL and LVDS output logic types.
Is a RoHS compliant version available?
Yes, the datasheet indicates that an '-R' suffix denotes a RoHS compliant part.
What is the frequency range of the M5R Series oscillator?
The M5R Series operates from 0.75 MHz up to 800 MHz.
What are the recommended solder pad dimensions for the M5R package?
The suggested solder pad layout uses a 0.200 in (5.08 mm) pad length and a 0.080 in (1.27 mm) pad width.
