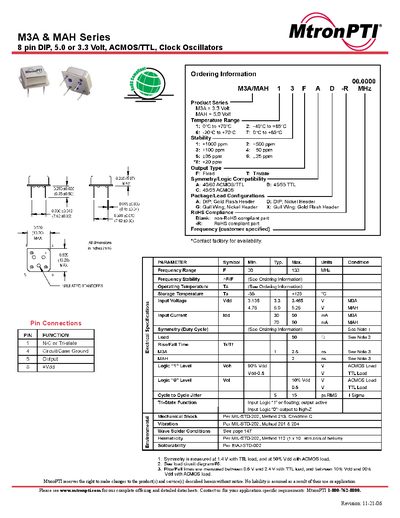

This document provides technical specifications for the MtronPTI M3A (3.3 Volt) and MAH (5.0 Volt) series of Clock Oscillators compatible with ACMOS and TTL logic levels.
The datasheet details operating parameters such as frequency range, stability options, temperature ranges, and input/output voltage levels. It also includes mechanical dimensions for various package configurations including DIP, Gull Wing, and Header styles.
| Frequency Range | 30 to 133 MHz |
|---|---|
| Operating Temperature (Standard) | O°C to +70°C |
| Input Voltage M3A | 3.135 V to 3.465 V |
| Package Types | DIP, Gull Wing, Header |
The M3A model operates at 3.3 Volts, while the MAH model operates at 5.0 Volts.
Yes, parts marked with '-R' in the ordering code are RoHS compliant.
