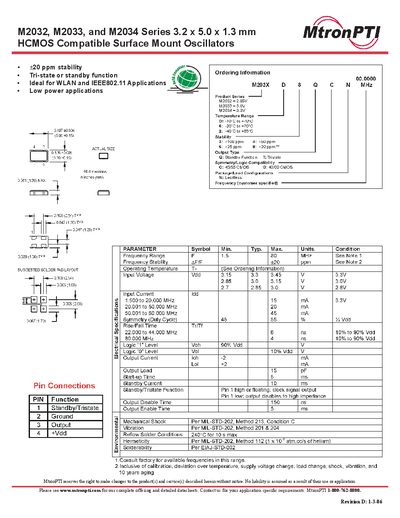

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application. Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI 1-800-762-8800. M2032, M2033, and M2034 Series 3.2 x 5.0 x 1.3 mm HCMOS Compatible Surface Mount Oscillators Revision D: 1-3-06 ±20 ppm stability Tri-state or standby function Ideal for WLAN and IEEE802.11 Applications Low power applications
This document provides technical specifications for the M2032, M2033, and M2034 Series of HCMOS Compatible Surface Mount Oscillators manufactured by MtronPTI. These devices are designed with a 3.2 x 5.0 x 1.3 mm package size and feature +20 ppm stability.
| Frequency Range | 1.5 to 80 MHz |
|---|---|
| Frequency Stability | +20 ppm |
| Operating Temperature (Standard) | -10°C to +70°C |
| Input Voltage (3.3V Series) | 3.15 V to 3.45 V |
| Output Current (Low) | -2 mA to +2 mA |
The dimensions are 3.2 x 5.0 x 1.3 mm.
They are ideal for WLAN and IEEE802.11 Applications.
