This document describes the features and characteristics of MtronPTI's M220x series clock oscillators, including the technology used, superior jitter performance, frequency range, and application areas.

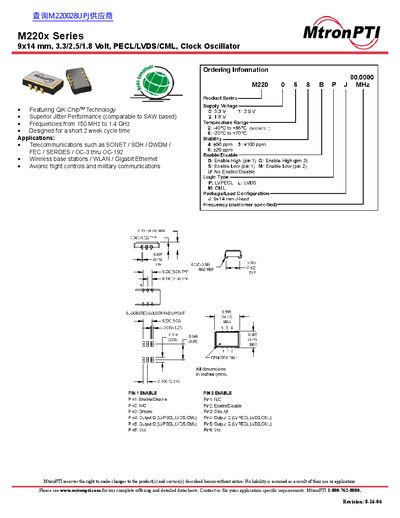

The document describes the MtronPTI M220x Series Clock Oscillator, a compact 9x14 mm component designed for telecommunications, wireless base stations, and military communications. It features QiK Chip™ Technology and offers superior jitter performance comparable to SAW-based oscillators.
The datasheet provides ordering information covering supply voltages of 3.3V, 2.5V, and 1.8V, as well as logic types including LVPECL, LVDS, and CML. It includes detailed electrical parameters such as frequency range (150 MHz to 1400 MHz), phase noise, and mechanical specifications.
| Frequency Range | 150 MHz to 1400 MHz |
|---|---|
| Supply Voltage | 3.3/2.5/1.8 Volt |
| Logic Types | PECL/LVDS/CML |
| Package Size | 9x14 mm J-lead |
The frequency range is from 150 MHz to 1.4 GHz.
The device supports LVPECL, LVDS, and CML logic types.
The start-up time is 10 ms.
