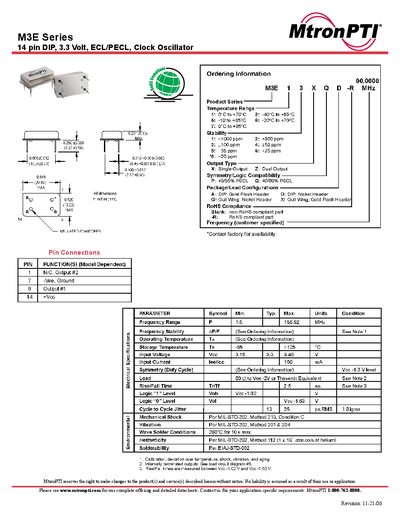

The M3E Series is a 14‑pin DIP clock oscillator manufactured by MtronPTI. It runs from a 3.3 V supply and provides either single or dual ECL/PECL outputs, making it suitable for high‑speed digital applications.
Key specifications include a wide frequency range of 1.5 – 155.52 MHz, frequency stability as tight as ±100 ppm, operating temperature from –40 °C to +85 °C, and compliance with RoHS requirements. Mechanical robustness is ensured by MIL‑STD‑202 shock and vibration testing.
| Package | 14 pin DIP |
|---|---|
| Supply Voltage | 3.3 V |
| Frequency Range | 1.5 – 155.52 MHz |
| Frequency Stability | ±1000 ppm (typical) |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -55 °C to +125 °C |
| Input Voltage | 3.15 – 3.45 V |
| Input Current | 100 mA |
| Output Type | Single or Dual |
| Rise/Fall Time | 25 ns |
| Cycle‑to‑Cycle Jitter | 13 – 25 ps RMS |
| Mechanical Shock | MIL‑STD‑202 Method 213, Condition C |
| Vibration | MIL‑STD‑202 Method 201 & 204 |
| RoHS Compliance | AR: RoHS compliant part |
It requires a 3.3 V supply.
The oscillator covers frequencies from 1.5 MHz to 155.52 MHz.
It operates from –40 °C up to +85 °C.
