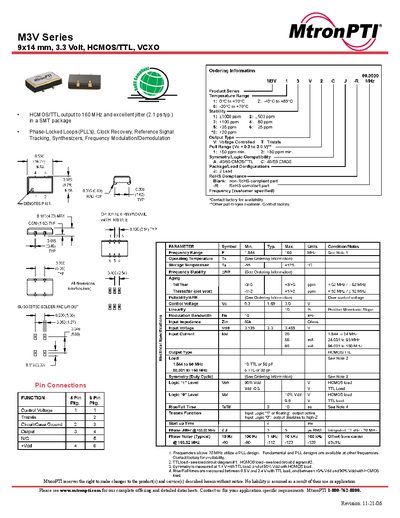

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application. Please see www.mtronpti.com for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI 1-800-762-8800. M3V Series 9x14 mm, 3.3 Volt, HCMOS/TTL, VCXO Revision: 11-21-06 Pin Connections HCMOS/TTL output to 160 MHz and excellent jitter (2.1 ps typ.) in a SMT package Phase-Locked Loops (PLL’s), Clock Recovery, Reference Signal Tracking, Synthesizers, Frequency Modulation/Demodulation
The M3V Series is a voltage‑controlled crystal oscillator (VCXO) offered in an SMT package with HCMOS/TTL output up to 160 MHz. The datasheet lists ordering codes, temperature ranges, stability figures, and optional pull‑range configurations, as well as RoHS compliance status.
Electrical characteristics include a frequency range of 1.544 – 160 MHz, input impedance of 50 kΩ, and a control voltage range of 0.3 – 3.0 V. The document also provides a lead‑free soldering profile with preheat, ramp‑up, and cool‑down steps for reliable assembly.
| Frequency Range | 1.544 – 160 MHz |
|---|---|
| Output Type | HCMOS/TTL |
| Input Impedance | 50 kΩ |
| Input Voltage (Vdd) | 3.135 – 3.465 V |
| Control Voltage | 0.3 – 3.0 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Frequency Stability | ±50 ppm min |
The device operates from –40 °C up to +85 °C.
