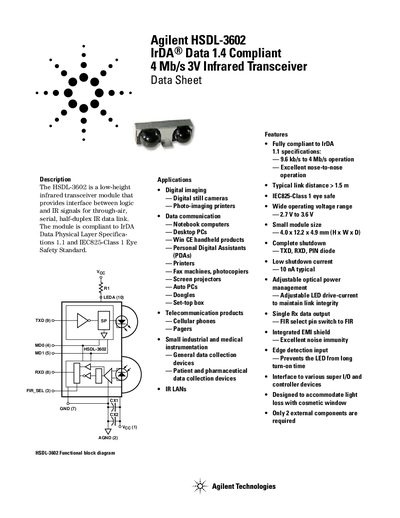

The Agilent HSDL-3602 is an infrared transceiver module that is fully compliant with IrDA 1.1 specifications. It supports data transfer rates from 9.6 kb/s to 4 Mb/s and offers excellent nose-to-nose operation. The module has a typical link distance of over 1.5 m and is IEC825-Class 1 eye safe. It operates on a wide voltage range of 2.7 V to 3.6 V and has a small module size. It features complete shutdown, low shutdown current, adjustable optical power management, and integrated EMI shield. The module is designed for various applications such as digital imaging, data communication, and telecommunication products.
The HSDL-3602 infrared transceiver module provides an interface between logic and IR signals for half‑duplex data links. It complies with IrDA 1.1 specifications and IEC825‑Class 1 eye‑safety standards, and is used in applications such as digital imaging, data communication, telecommunications, and small industrial or medical instrumentation.
Key features include a wide supply voltage range of 2.7 V to 3.6 V, a compact size of 4.0 × 12.2 × 4.9 mm, adjustable LED drive current, complete shutdown capability with a typical 10 nA shutdown current, and only two external components required for operation.
| Data rate range | 9.6 kb/s – 4 Mb/s |
|---|---|
| Supply voltage | 2.7 V – 3.6 V |
| Module dimensions | 4.0 × 12.2 × 4.9 mm (H × W × D) |
| Shutdown current | 10 nA typical |
| LED drive current range | 400 mA – 650 mA |
| Peak LED current | 650 mA |
| Typical link distance | > 1.5 m |
| Receiver output voltage | 0.5 V – 0.5 V (typ) |
The module operates from 2.7 V up to 3.6 V.
It supports data rates up to 4 Mb/s.
Only two external components are required.
