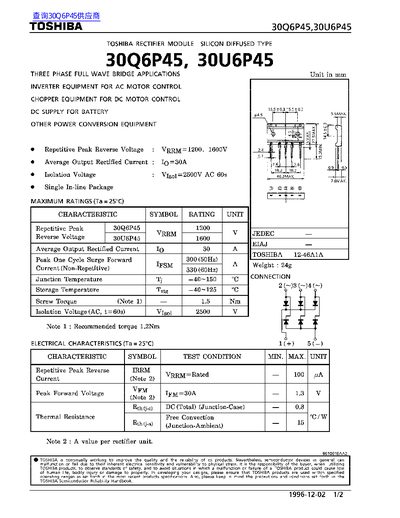

The Toshiba 30Q6P45 and 30U6P45 are silicon‑diffused, three‑phase full‑wave bridge rectifier modules intended for inverter equipment, chopper equipment, DC motor control, and other power‑conversion applications. The document lists maximum ratings, electrical characteristics, and thermal specifications to aid designers in selecting the appropriate part.
Key specifications include a repetitive peak reverse voltage of 1200 V (30Q6P45) or 1600 V (30U6P45), an average output rectified current of 30 A, isolation voltage of 2500 V AC for 60 s, and thermal resistance values of 0.8 °C/W (junction‑case) and 15 °C/W (junction‑ambient). Operating temperature ranges span –40 °C to 150 °C for the junction and –40 °C to 125 °C for storage.
| Repetitive Peak Reverse Voltage (30Q6P45) | 1200 V |
|---|---|
| Repetitive Peak Reverse Voltage (30U6P45) | 1600 V |
| Average Output Rectified Current (Io) | 30 A |
| Isolation Voltage (AC, 60 s) | 2500 V |
| Junction Temperature Range (Tj) | -40 °C to 150 °C |
| Storage Temperature Range (Tst) | -40 °C to 125 °C |
| Thermal Resistance Junction‑Case (Rthjc) | 0.8 °C/W |
| Thermal Resistance Junction‑Ambient (Rthja) | 15 °C/W |
| Peak One‑Cycle Surge Forward Current (50 Hz) | 300 A |
| Non‑Repetitive Surge Forward Current (60 Hz) | 330 A |
The 30Q6P45 module is rated for a repetitive peak reverse voltage of 1200 V.
Both modules have an isolation voltage rating of 2500 V AC for 60 seconds.
The recommended screw torque is 1.5 Nm, with a note suggesting 1.2 Nm as a recommended value.
The junction temperature can operate from –40 °C to 150 °C, and the storage temperature range is –40 °C to 125 °C.
