Toshiba 2SC3182 Power Amplifier Datasheet

This is a copyright notice

Brand: Toshiba
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 95 KB
Published: 05 June, 2012
Updated: 01 October, 2023
MD5 checksum: 21BC8873A0BF853840C70A02582F796B
PDF: Toshiba 2SC3182 Power Amplifier Datasheet PDF

About this manual

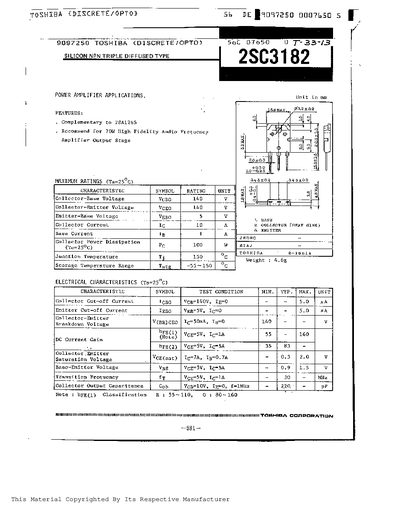

This document is a technical datasheet for the Toshiba 2SC3182, a complementary silicon NPN triple diffused type transistor. It is specifically recommended for use in the output stage of 70W high-fidelity audio frequency amplifiers and is designed to be paired with the 2SA1265.

What's inside

Features
Maximum Ratings
Electrical Characteristics
Safe Operating Area
Output Characteristics

Specifications

Collector-Emitter Voltage (Vceo)	140 V
Emitter-Base Voltage (Vebo)	5 V
Collector Current (Ic)	10 A
Junction Temperature (Tj)	150 °C
Storage Temperature Range (Tstg)	-55~150 °C

Frequently asked questions

Which transistor is this complementary to?

The 2SC3182 is complementary to the 2SA1265.
