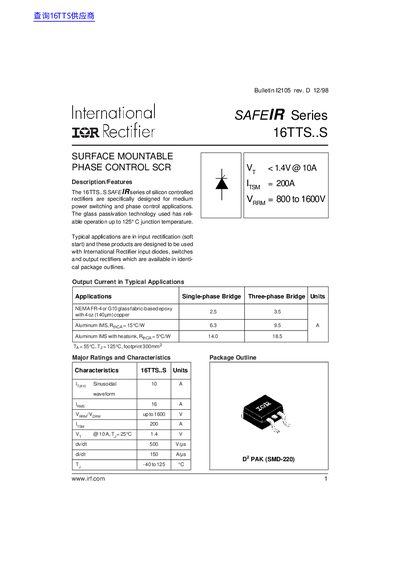

The 16TTS..S ����IR series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125° C junction temperature. Typical applications are in input rectification (soft start) and these products are designed to be used with International Rectifier input diodes, switches and output rectifiers which are available in identi- cal package outlines.
The SAFEIR Series 16TTS..S silicon‑controlled rectifier is designed for medium‑power switching and phase‑control applications. It features glass passivation for reliable operation up to a 125 °C junction temperature and is intended for use with International Rectifier input diodes, switches, and output rectifiers.
The bulletin includes detailed electrical ratings, thermal‑mechanical specifications, marking information, and recommended handling procedures such as soldering temperature and tape‑and‑reel packaging. It also provides typical application data for single‑phase and three‑phase bridge configurations.
| Maximum RMS On‑state Current | 16 A |
|---|---|
| Maximum Reverse Voltage (16TTS16S) | 1600 V |
| Recommended Soldering Temperature | 240 °C for 10 seconds |
| Maximum Peak Gate Power | 8.0 W |
| Maximum Average Gate Power | 2.0 W |
The 16TTS16S version is rated for a maximum reverse voltage of 1600 V.
A soldering temperature of 240 °C for 10 seconds is recommended.
